Product Parameters / Product Parameters
| Specification (CM) | Voltage (V) | Power (KW) | Time range (seconds) | Temperature range (℃) | Working pressure (KG/CM²) |
|---|---|---|---|---|---|
| 38×38 | 220/110 | 2.2 | 0-999 | 0-399 | 0-8 |
| 40×50 | 220/110 | 3 | 0-999 | 0-399 | 0-8 |
| 40×60 | 220/380 | 3.8 | 0-999 | 0-399 | 0-8 |
| 60×80 | 220/380 | 6 | 0-999 | 0-399 | 0-8 |

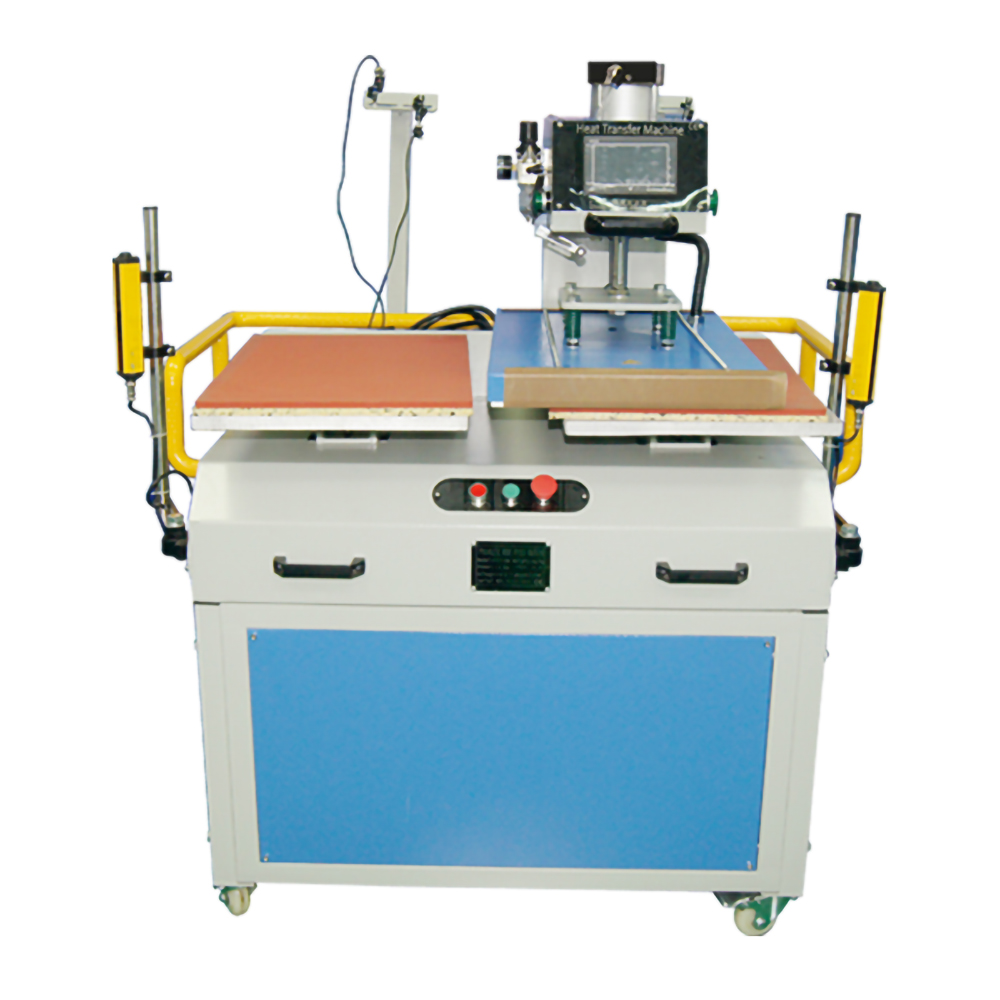

Product features / Product Characteristics
fully automatic double-station heat press machine suitable for heat transfer printing、sublimation digital printing、cushion printing、cup sleeve printing、mouse pad printing、jersey heat transfer、advertising clothing、T-shirt、pearl board、soundproof panelsetc. printing。this machine can transfer sublimation、colored patterns and text with solvent-based inks are heat-transferred ontocotton, linen, chemical fiber、nylonand other fabrics, as well as ceramic products，also supports flocking transfer and foaming printing heat treatment，andgarmentslow-temperature low-pressure lining bonding with fabric, such as garments、for bonding dolls and similar items，also suitable for small-batch handkerchief production。multiple specifications available，custom sizes available！
| safety light curtain | equipped with safety light curtain，safer operation。 |
| PLC programming，with piece-counting and alarm functions | PLC programmable control，with piece-counting function、alarm function，highly automated。 |
| external cylinder，strong pressure | external cylinder design，strong pressure，stable pressing results。 |
| head automatically moves left/right for pressing | head can automatically move left/right for pressing，alternating double-stationoperation，higher efficiency。 |
| imported linear double-axis sliding | adoptsimported linear double-axis sliding-type operation，durable，smoother sliding。 |
Frequently Asked Questions
01What kind of warranty and long-term support do you offer?
Every Dingfeng machine is covered by a 12-month warranty plus lifetime maintenance support. If a fault occurs during the warranty period, we supply the replacement parts; after the warranty we continue to provide spare parts and technical support at cost price.
02How long does production and delivery take?
For standard models, production usually takes 7 to 15 days after the deposit is received. For customized configurations or special voltage requirements, allow around 20 days. The exact date is written into the contract.
03How is the machine packed and shipped?
Every machine is packed in an export-grade wooden case with moisture-proof and shock-proof protection inside, suitable for long-distance sea freight. We send you photos of the packing and container loading, together with the shipping documents.
04Do you provide installation, training and after-sales service?
Yes. Each machine is delivered with an English manual and video guides, and our engineers support you online during installation and commissioning. When necessary, our after-sales engineers can travel to your factory to help with installation and training. Spare parts and technical support are available for the life of the machine.
05How can I get a quotation?
Tell us your material, working width, required output and destination port. Our sales team will recommend a suitable configuration and send you a quotation.
06What pressure does it use?
Air pressure, so every cycle has the same pressure and the results are repeatable.
07What is it for?
High-volume sublimation, DTF and vinyl transfer printing.
08What sizes are available?
Platen size and station configuration can be selected. Tell us your maximum print area.
09What air supply does it require?
A standard compressed air supply. Send us your workshop details and we will confirm the specification before delivery.
