Product Parameters / Product Parameters

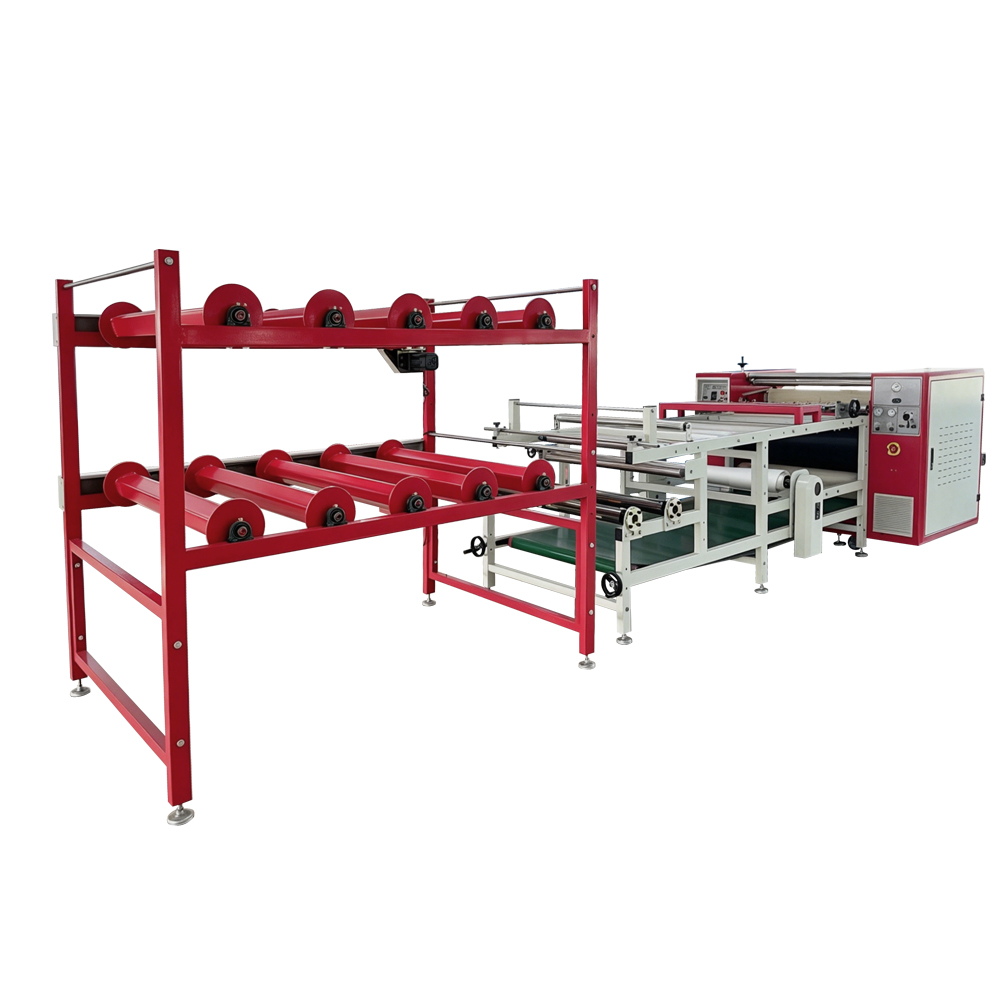

Name：ribbon top-feed transfer printing machine（Web-fed transfer printing machine） | Model：ZS-AB
| Item | 610mm | 800mm |
|---|---|---|
| Roller Diameter | 610mm | 800mm |
| Width | 1300mm | 1300mm |
| Voltage | 220V/380V | 380V |
| Power | 38kW | 58kW |
| Speed (m/h) | 280 | 616 |
| Machine size (mm) | 7050×2100×1900 | 7230×2195×2025 |
| Packing size (mm) | 2500×3000×2000 | 2500×2400×2200 |
| Weight | 1800kg | 3100kg |
Equipment Advantages / Equipment Advantage
| positioning worktable | positioning worktable，easily achieves single/double-sided printing of strap products/double-sided printing，more precise alignment。 |
| seamless steel tube roller | inside the roller/precision external grinding，precision cylindrical grinding，Teflon-coated，even roller heating without color difference。 |
| high-quality heating tube | high-quality stainless steel heating tubes and heat transfer oil，direct heating of oil layer，45minutes to heat up to200°C。 |
| pneumatic pressing | pneumatic pressing（adjustable pressure），front silicone roller pressing，better transfer effect。 |
| high-density blanket | high-density thickened blanket，excellent transfer effect，long service life。 |
Frequently Asked Questions
01What kind of warranty and long-term support do you offer?
Every Dingfeng machine is covered by a 12-month warranty plus lifetime maintenance support. If a fault occurs during the warranty period, we supply the replacement parts; after the warranty we continue to provide spare parts and technical support at cost price.
02How long does production and delivery take?
For standard models, production usually takes 7 to 15 days after the deposit is received. For customized configurations or special voltage requirements, allow around 20 days. The exact date is written into the contract.
03How is the machine packed and shipped?
Every machine is packed in an export-grade wooden case with moisture-proof and shock-proof protection inside, suitable for long-distance sea freight. We send you photos of the packing and container loading, together with the shipping documents.
04Do you provide installation, training and after-sales service?
Yes. Each machine is delivered with an English manual and video guides, and our engineers support you online during installation and commissioning. When necessary, our after-sales engineers can travel to your factory to help with installation and training. Spare parts and technical support are available for the life of the machine.
05How can I get a quotation?
Tell us your material, working width, required output and destination port. Our sales team will recommend a suitable configuration and send you a quotation.
06What does top-feed mean?
Material is fed from the top of the machine, which suits continuous ribbon and webbing printing.
07What materials can it print?
Ribbons, webbing, lanyards and other narrow materials.
08What width is available?
Several narrow widths are available. Tell us your material width.
