Product Parameters / Product Parameters

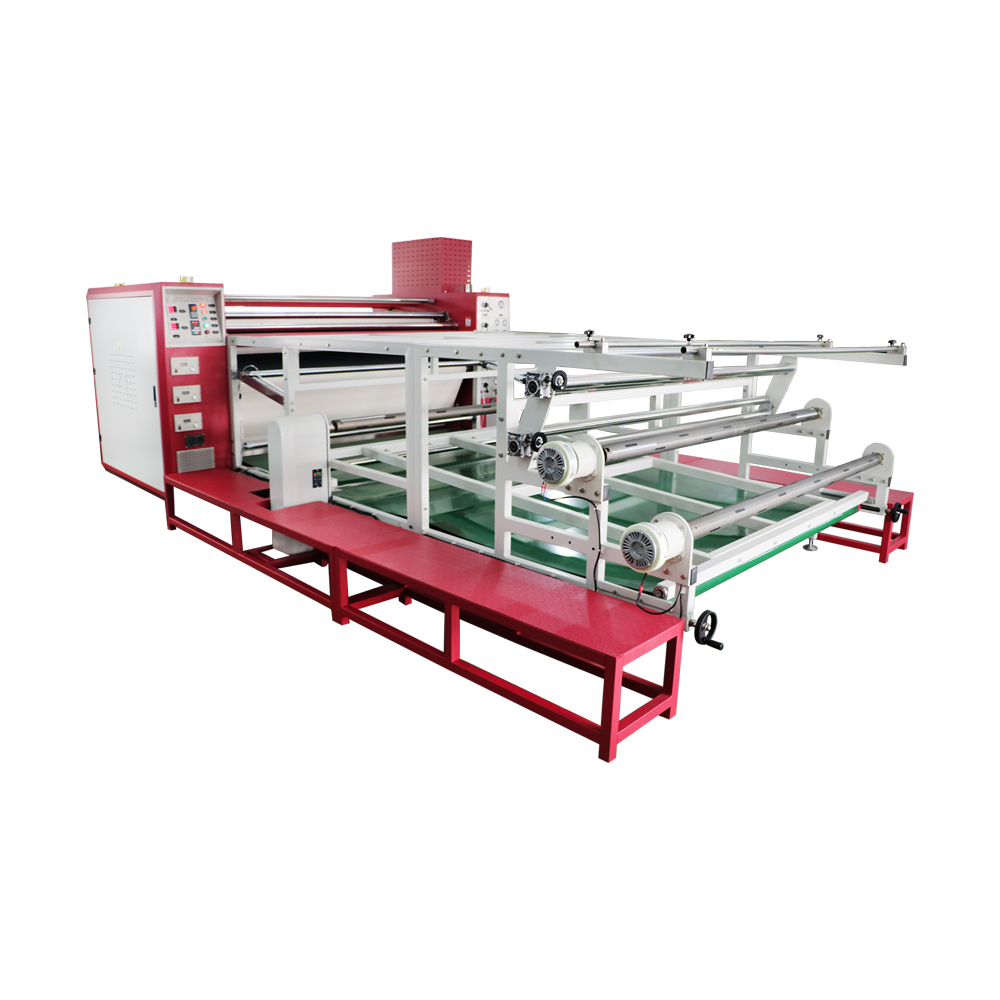

Name：Roller Transfer Machine（Deluxe edition）（Roll transfer printing machine Deluxe Edition） | Model：ZS-BC
| Item | 800mm | 1000mm | 1200mm |
|---|---|---|---|
| Roller Diameter | 800mm | 1000mm | 1200mm |
| Width | 2000mm | 2000mm | 2000mm |
| Voltage | 380V | 380V | 380V |
| Power | 68kW | 100kW | 113kW |
| Speed (m/h) | 800-1100 | 1200-1600 | 1200-1600 |
| Machine size (mm) | 4950×2850×1980 | 5500×3000×2300 | 6000×3000×2600 |
| Packing size (mm) | 3000×1450×2200 | 3150×2150×2500 | Main machine and electric cabinet packed separately |
| Weight | 3300kg | 4800kg | 5500kg |
Equipment Advantages / Equipment Advantage
| fully automatic protection | originally equipped with100%high-density blanket，high-temperature resistant、high toughness、wear-resistant and durable；automatic blanket deviation correction、automatic forward/reverse、automatic disengagement，more stable operation，extends service life。 |
| high efficiency and energy saving | blanket coverage rate up to50%，expanded working area，reduces roller heat loss；higher overall utilization，saves more power than conventional models30%。 |

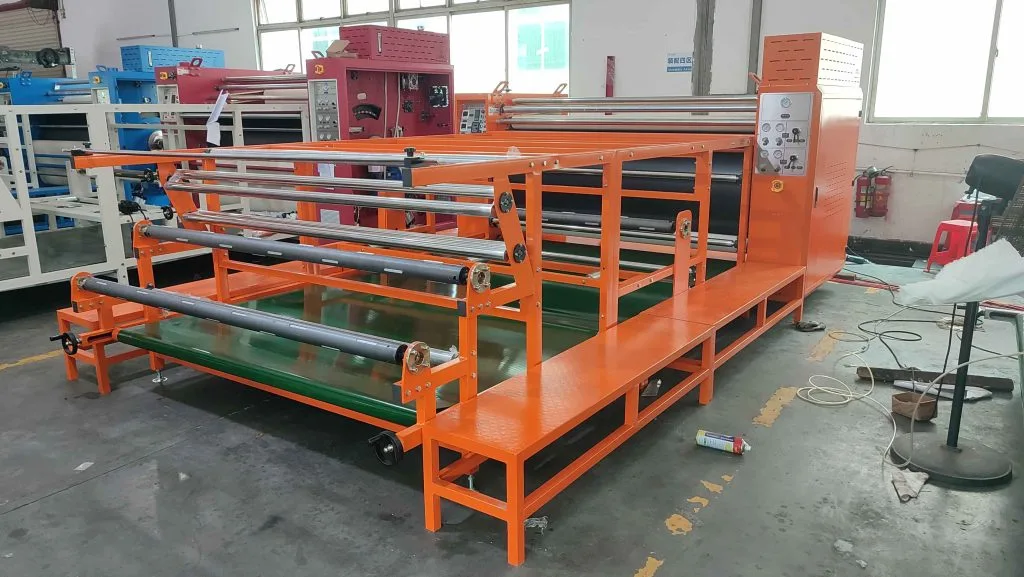

| efficient production | double feeding structure：dual fabric rolls、dual transfer paper feeding design，materials can be prepared and changed in advance without stopping，shortens material change time，ensures continuous production。 |
| safe and stable | shutdown protection、over-temperature alarm、smoke extraction system、independent sealed electric cabinet；Teflon roller is hard and non-stick，large-diameter bearing resists deformation，guaranteed transfer quality。 |
| ergonomic design | special fabric holder allows placement without piercing；paper windingVV-slot simplifies the process；independent frequency speed adjustment，windingSpeedindependently adjustable。 |
Frequently Asked Questions
01What kind of warranty and long-term support do you offer?
Every Dingfeng machine is covered by a 12-month warranty plus lifetime maintenance support. If a fault occurs during the warranty period, we supply the replacement parts; after the warranty we continue to provide spare parts and technical support at cost price.
02How long does production and delivery take?
For standard models, production usually takes 7 to 15 days after the deposit is received. For customized configurations or special voltage requirements, allow around 20 days. The exact date is written into the contract.
03How is the machine packed and shipped?
Every machine is packed in an export-grade wooden case with moisture-proof and shock-proof protection inside, suitable for long-distance sea freight. We send you photos of the packing and container loading, together with the shipping documents.
04Do you provide installation, training and after-sales service?
Yes. Each machine is delivered with an English manual and video guides, and our engineers support you online during installation and commissioning. When necessary, our after-sales engineers can travel to your factory to help with installation and training. Spare parts and technical support are available for the life of the machine.
05How can I get a quotation?
Tell us your material, working width, required output and destination port. Our sales team will recommend a suitable configuration and send you a quotation.
06What makes ZS-BC different?
It is the deluxe version with a wider working width, for larger panels and higher volume.
07What can it print?
Fabric, garments, ribbons and webbing – especially wide panels.
08What working width is available?
Tell us your maximum fabric width and we will confirm the suitable model.
09How does it handle wide panels?
The wide roller and uniform heating keep colour consistent from edge to edge on wide material.
