Product Parameters / Product Parameters

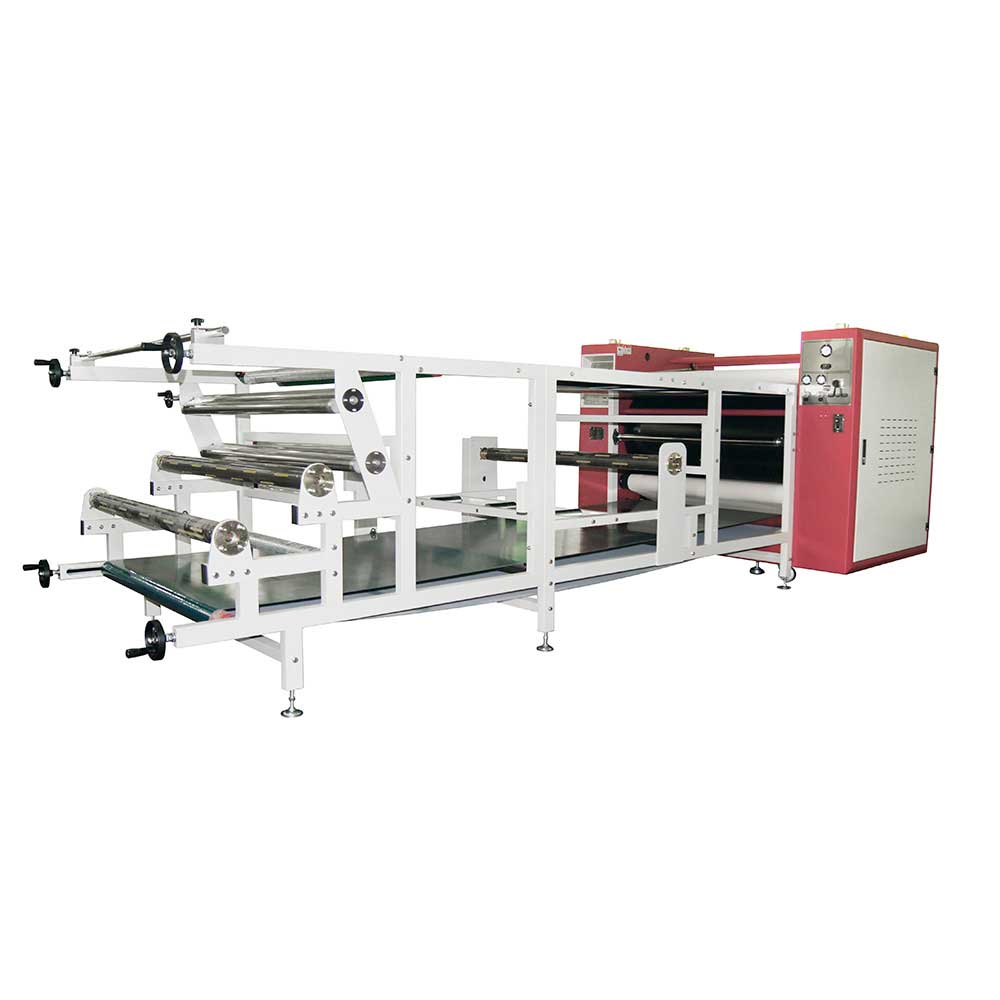

Name：mouse pad transfer machine（Mouse pad heat transfer printing machine） | Model：ZS-BE
| Item | 420mm | 610mm（1300） | 610mm（1800） |
|---|---|---|---|
| Roller Diameter | 420mm | 610mm | 610mm |
| wide-width | 1300mm | 1300mm | 1800mm |
| Voltage | 220V/380V | 220V/380V | 220V/380V |
| Power | 24kW | 45kW | 45kW |
| Temperature | 0-260℃ | 0-260℃ | 0-260℃ |
| Noise | 30dB | 30dB | 30dB |
| Installation dimensions (mm) | 4730×2100×1200 | 3950×2100×1850 | 4950×2600×1850 |
| Packing size (mm) | 2200×1100×1550 | 2250×1250×2000 | 2750×1240×2000 |
| Speed (m/h) | 120-150 | 220-280 | 220-280 |
| Weight | 1300kg | 1600kg | 2000kg |
Equipment Advantages / Equipment Advantage

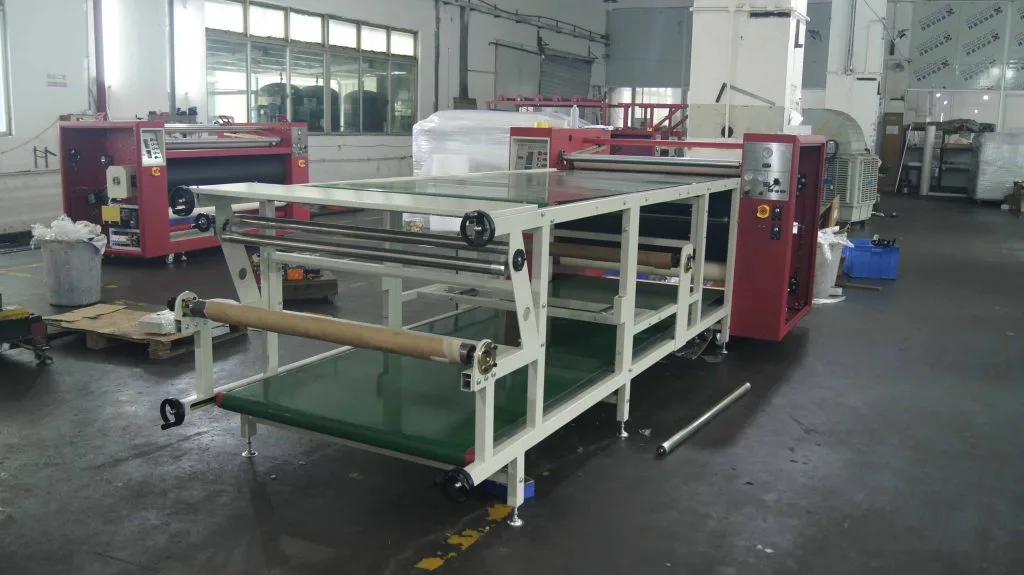

| single-layer roller | roller made of seamless steel tube，precision internal/external grinding，precision cylindrical grinding，Teflon-coated，even roller heating without color difference。 |
| high-density blanket | thickened blanket，excellent transfer effect，long service life。 |
| copper brush conductive ring | precise metal temperature control，copper-carbon brush direct conductive slip ring，good conductivity，low maintenance cost，long service life。 |
| aluminum alloy air shaft | 2 air shafts for transfer paper feeding and winding，air shaft winding，tighter and more efficient paper winding，saves labor。 |
| pneumatic pressing device | pressure roller presses the blanket，more vivid transfer colors，Speedfaster，left/rightPressureadjustable for different products being transferred。 |
Frequently Asked Questions
01What kind of warranty and long-term support do you offer?
Every Dingfeng machine is covered by a 12-month warranty plus lifetime maintenance support. If a fault occurs during the warranty period, we supply the replacement parts; after the warranty we continue to provide spare parts and technical support at cost price.
02How long does production and delivery take?
For standard models, production usually takes 7 to 15 days after the deposit is received. For customized configurations or special voltage requirements, allow around 20 days. The exact date is written into the contract.
03How is the machine packed and shipped?
Every machine is packed in an export-grade wooden case with moisture-proof and shock-proof protection inside, suitable for long-distance sea freight. We send you photos of the packing and container loading, together with the shipping documents.
04Do you provide installation, training and after-sales service?
Yes. Each machine is delivered with an English manual and video guides, and our engineers support you online during installation and commissioning. When necessary, our after-sales engineers can travel to your factory to help with installation and training. Spare parts and technical support are available for the life of the machine.
05How can I get a quotation?
Tell us your material, working width, required output and destination port. Our sales team will recommend a suitable configuration and send you a quotation.
06Can it print mouse pads?

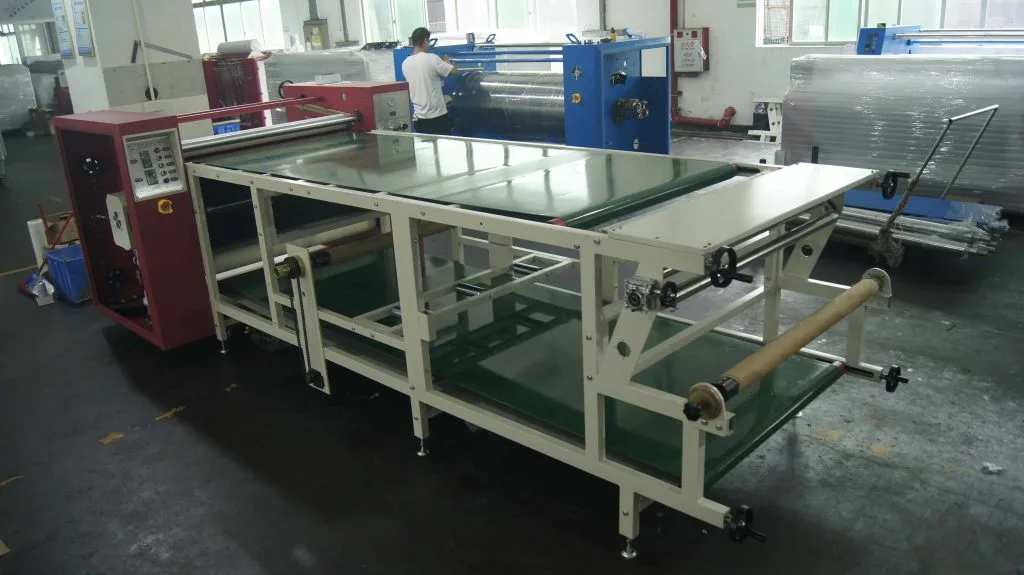

Yes – ZS-BE is designed for mouse pads and similar flat sheet items such as pillows.
07What sheet sizes can it handle?
Sheet sizes are selected according to your products. Tell us the maximum sheet size.
08What materials is it suitable for?

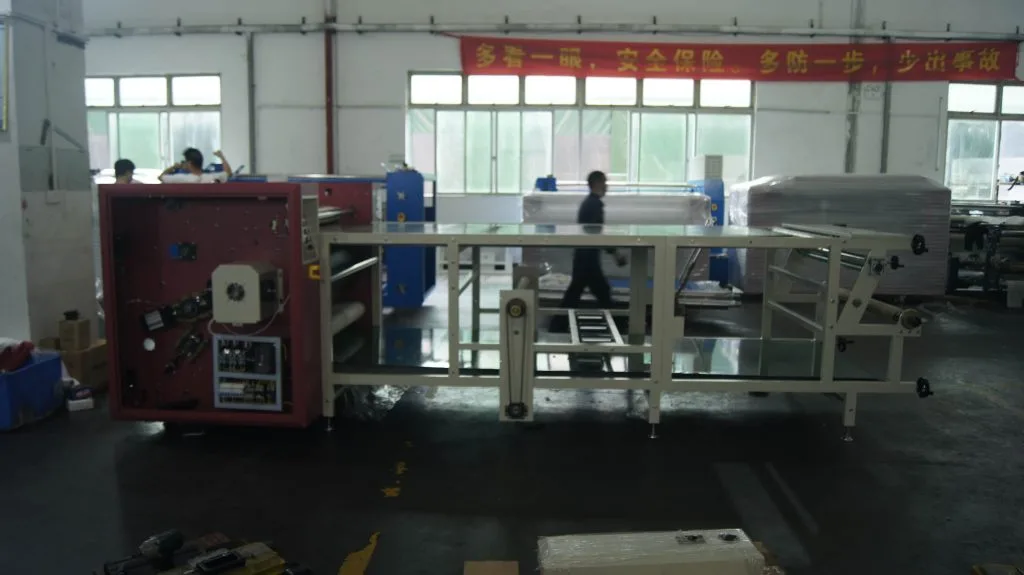

Sublimation-coated sheet materials used for mouse pads, mats and similar products.
