Technical Parameters
| Laser Wavelength | 1064 nm |
| Frequency Range | 1 – 600 KHz / 20 – 200 KHz |
| Pulse Length | 200 ns / 50 – 100 ns |
| Spot Diameter | 7 ± 0.5 mm / 6.5 ± 1 mm |
| Beam Quality | < 1.5 / < 1.6 |
| Engraving Depth | 0.1 – 1.0 mm |
| Working Temperature | 0 – 40 °C |
| Cooling Mode | Air Cooling |
| Working Environment | Dry, clean & ventilated |
| Working Power | 220V / 110V, 50 / 60Hz |
Model Configuration
| Model | Working Size (mm) | Laser Power (optional) | Total Power (W) | Cutting/Engraving Speed |
|---|---|---|---|---|
| Fiber Laser Marking Machine DF-G | 750 x 1750 / 300 x 300 | 20W / 30W / 50W / 100W | 600 / 1000 / 2000 | 1000 mm/s |
| UV Laser Marking Machine DF-UV | 750 x 1750 / 300 x 300 | 20W / 30W / 50W / 100W | 800 / 1000 / 1200 | 1000 mm/s |
| CO2 Laser Marking Machine DF-C | 750 x 1750 / 300 x 300 | 20W / 30W / 50W / 100W | 600 / 800 / 1000 / 1200 | 1000 mm/s |
Custom non-standard specifications available (unit: mm)
Frequently Asked Questions
01What kind of warranty and long-term support do you offer?
Every Dingfeng machine is covered by a 12-month warranty plus lifetime maintenance support. If a fault occurs during the warranty period, we supply the replacement parts; after the warranty we continue to provide spare parts and technical support at cost price.
02How long does production and delivery take?
For standard models, production usually takes 7 to 15 days after the deposit is received. For customized configurations or special voltage requirements, allow around 20 days. The exact date is written into the contract.
03How is the machine packed and shipped?
Every machine is packed in an export-grade wooden case with moisture-proof and shock-proof protection inside, suitable for long-distance sea freight. We send you photos of the packing and container loading, together with the shipping documents.
04Do you provide installation, training and after-sales service?
Yes. Each machine is delivered with an English manual and video guides, and our engineers support you online during installation and commissioning. When necessary, our after-sales engineers can travel to your factory to help with installation and training. Spare parts and technical support are available for the life of the machine.
05How can I get a quotation?
Tell us your material, working width, required output and destination port. Our sales team will recommend a suitable configuration and send you a quotation.
06What size of workpiece can it handle?

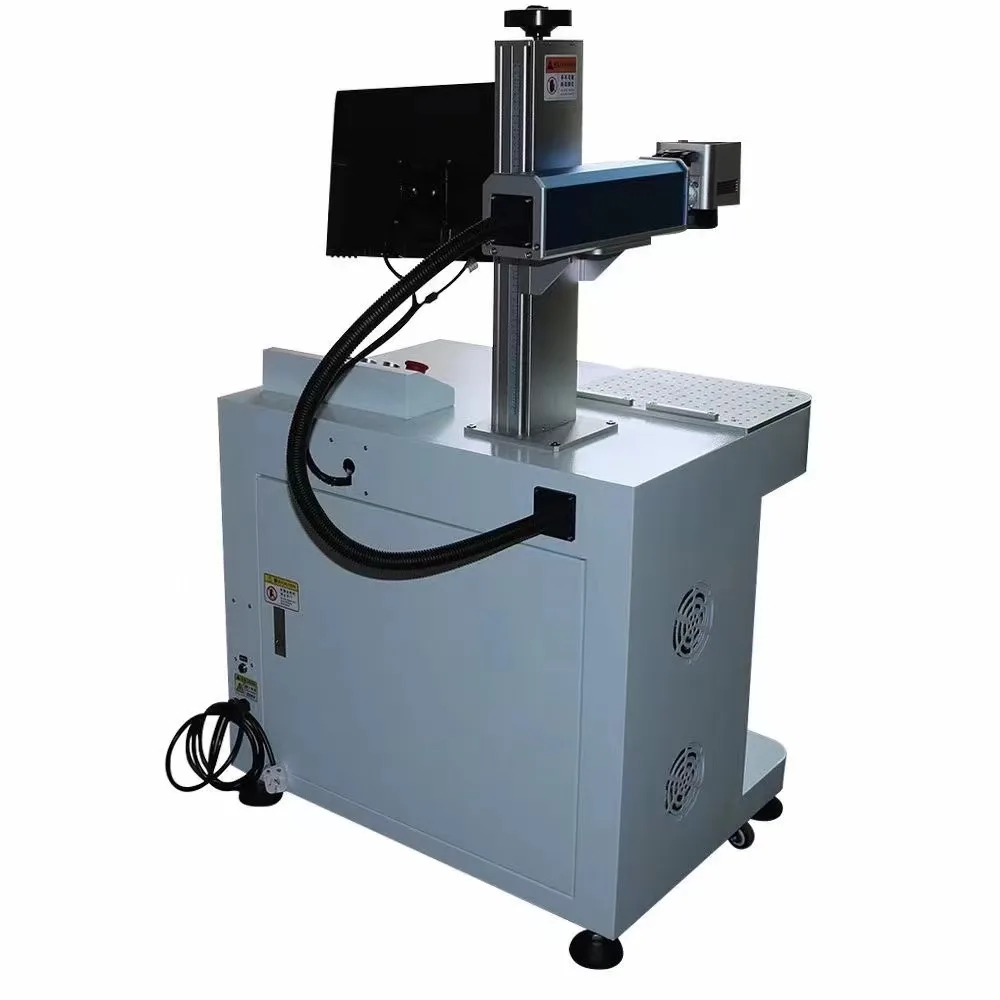

Static machines are designed for large or heavy parts loaded manually; the working area depends on the model.
07What materials can it mark?
Wood, acrylic, leather, glass, plastics, rubber and coated metals.
08When should I choose static over galvo?
When your parts are large, heavy, or loaded by hand instead of moving on a conveyor.
